The SITRAK 8×4 16m³ Concrete Mixer Truck combines advanced technology, strong power, and reliable components to ensure efficient concrete mixing and transportation. Built on SINOTRUK’s SITRAK platform, it delivers outstanding durability and stability even under the toughest construction conditions.
Designed for both urban and rural construction projects, this mixer truck ensures high efficiency, quick discharge, and consistent concrete quality.
Key Technical Specifications referenced from: https://www.sinotruk.com
SITRAK 8×4 16m³ Concrete Mixer Truck Main Specifications:
-
Overall Dimensions: 9400 × 2500 × 3850 mm
-
Mixer Tank Capacity: 16 m³
-
Water Tank Capacity: 450 L
-
Water Supply System: Pressure-type water supply
-
Radiator Capacity: 18 L
-
Reducer: Top-grade P68 reducer, Italian technology
-
Hydraulic Pump: ARK PV089, Italian technology
-
Hydraulic Motor: ARK MF089, Italian technology
-
Axle Configuration: 8×4
-
Wheelbase: 3825 + 1350 mm
-
Steering Type: Left-hand drive (LHD)
-
Engine Model: WD615.69
-
Rated Power: 370 HP
-
Emission Standard: Euro IV
-
Fuel Type: Diesel
-
Transmission: HW13710 manual gearbox
-
Front Axle: Drum type
-
Rear Axle: HC16 driving axle
-
Tires: 12R22.5 (10 + 1 spare)
-
Cabin: HW76 cabin with air conditioning
-
Fuel Tank Capacity: 400 L (aluminum alloy)
-
Top Feed Hopper Size: 650 mm
-
Discharge Speed: 2 m³/min
-
Charging Speed: 3 m³/min
-
Additional Equipment: Toolbox
-

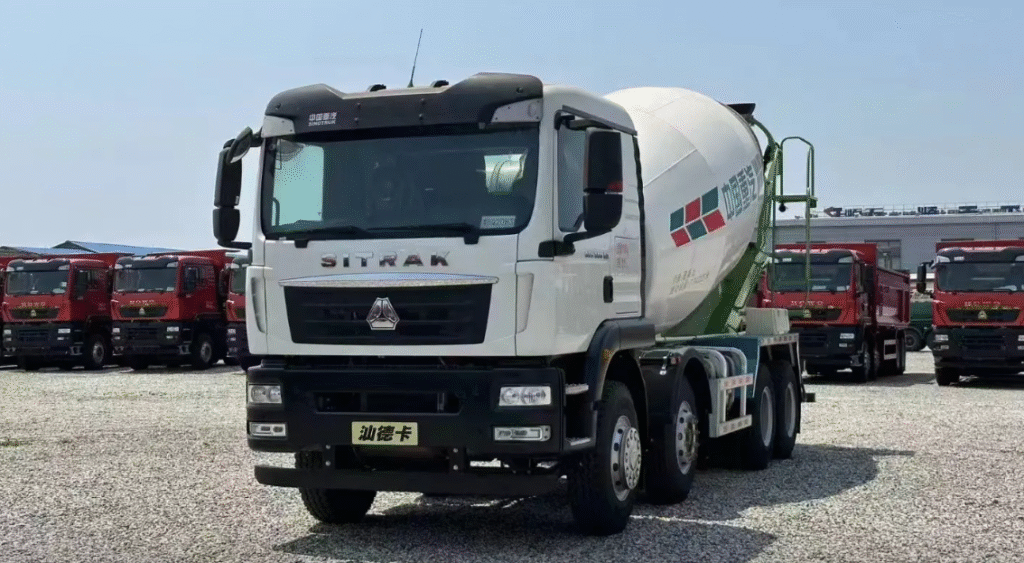

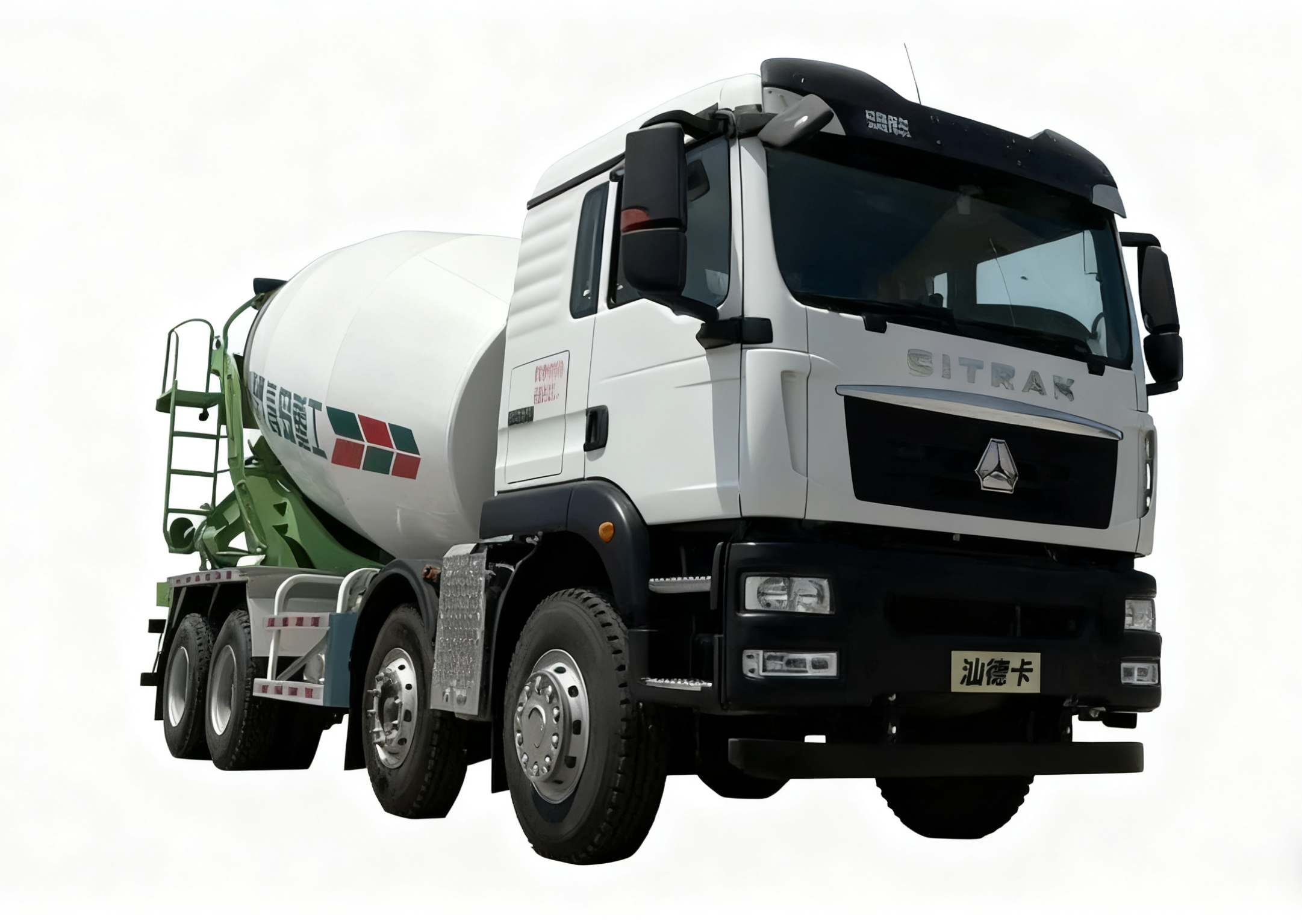

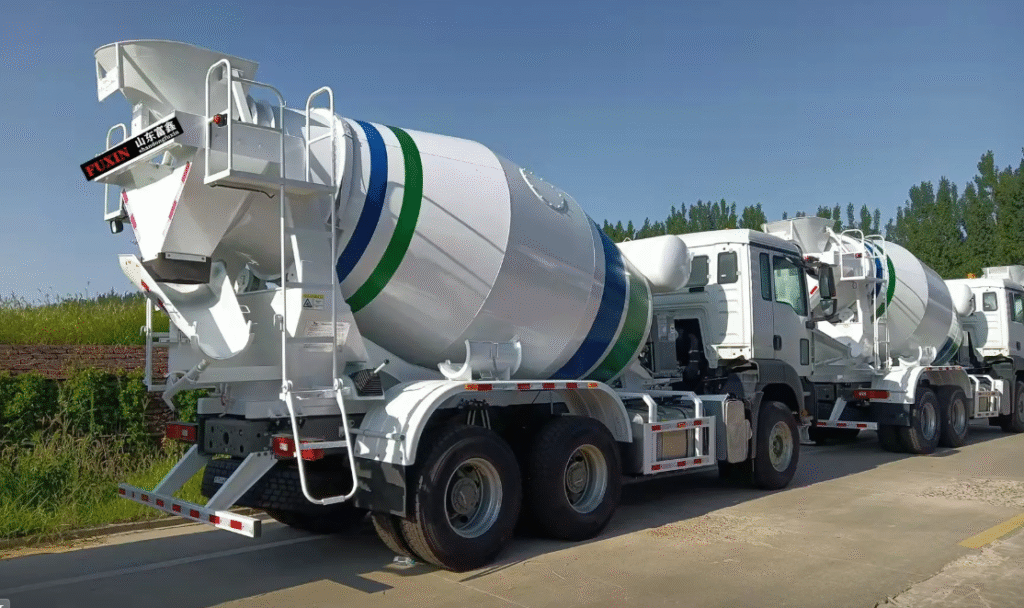

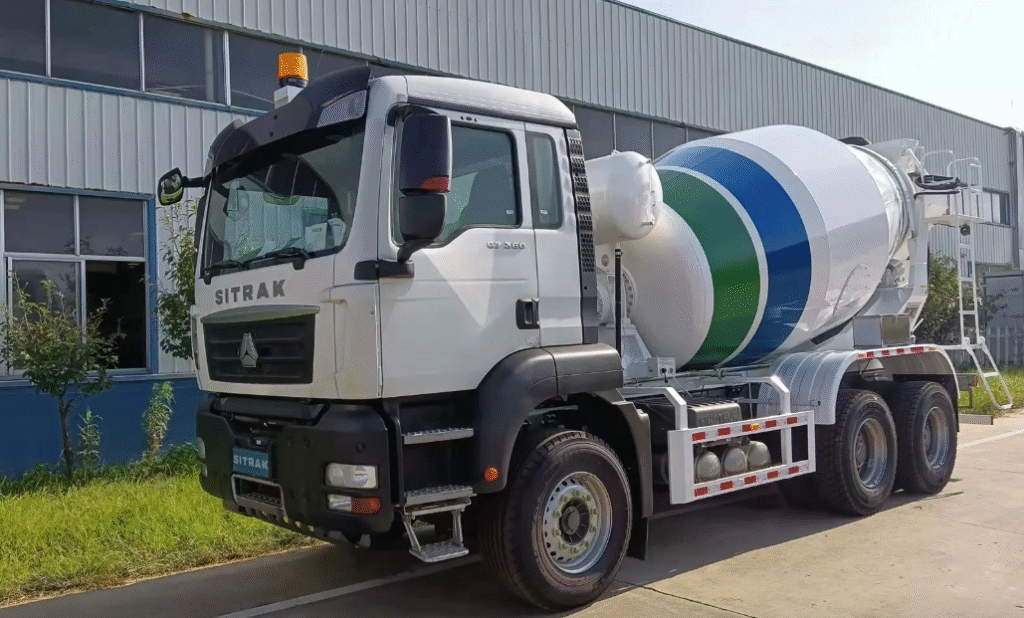

SITRAK 8×4 16m³ Concrete Mixer Truck
✅ Efficient Mixing & Discharging — High-capacity 16m³ drum with optimized spiral design ensures uniform mixing and faster discharge.
✅ Italian Hydraulic System — Equipped with ARK hydraulic components for stable performance and long service life.
✅ Strong Powertrain — 370HP SINOTRUK engine and HW13710 gearbox guarantee smooth operation and high torque output.
✅ Reliable Structure — Heavy-duty chassis and reinforced axles deliver excellent load capacity and road adaptability.
✅ Comfortable Driving Cabin — HW76 cabin with A/C and ergonomic layout for operator comfort.
